Arriflex M-Series
More light, less work

The M-Series encompasses ARRI's most innovative, Academy Award-winning daylight products featuring the unique, patented MAX reflector. The MAX Technology enables lens-less, focusable lamp heads that unify the advantages of a PAR and a Fresnel providing maximum light output.

M-18
The M18 combines MAX Technology, True Blue features and a new 1800 W lamp. The result is an exciting new class of HMI that can be powered from most domestic sockets. It is as small as a 1200 W PAR lamphead but with 70% higher light output. Adjustable from 20° to 60° beam angle, the M18 can also be used with 1200 W lamps.

Features
Lens-less MAX Technology: Easy to use
New 1800 W lamp
Virtually the same size as a 1200 W lamphead but more than 70 % brighter
Runs from most domestic sockets world-wide
Uses existing 575/1200/1800 W cables
Can also be used with 1200 W lamps and ballasts
Cross Cooling allows safe operation at any tilt angle
Protection class IP 23
TRUE BLUE tilt lock holds even heavy Chimeras
Easy maintenance

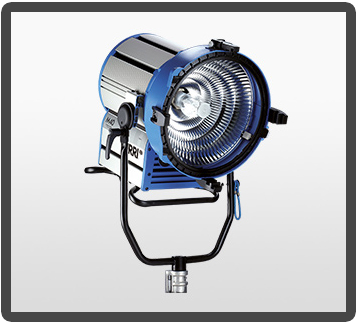

M-40
Like all members of the M-Series, the M40 unifies the advantages of a PAR light and a Fresnel fixture. Due to the unique lens-less MAX Technology, the unit is open face and thus very bright, but also focussable over a range of 18 to 52° HPA (Half Peak Angle), casting a crisp shadow. The reflector characteristics is optimised for 4000 W lamps, but can also be used with 2500 W lamps.

The lamphead is equipped with a CCL module (compensation for cable loss). When operated with the ARRI EB 2.5/4 with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length.

Features
Lens-less MAX Technology: Easy to use
Around 30% brighter than AS 40
Same size as AS 40 but over 3 kg lighter
Compensation for Cable Loss (CCL)
Tubular steel yoke
Two disk brakes with steel handle
Cross Cooling allows safe operation at extreme tilt angles
Protection class IP 23

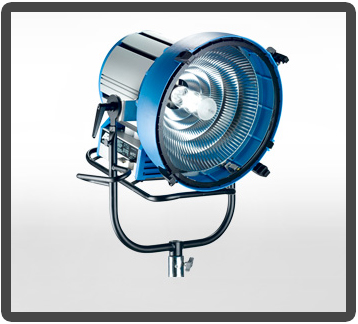

M-90
To close the gap between the M40 and the ARRIMAX 18/12, the M90 introduces a new power class of 9,000 W. The unit is open-faced and very bright; it is also focusable from 16° up to 49°, producing a remarkably even light field and a crisp, clear shadow. ARRI technology partner Osram developed a new 9,000 W lamp for the M90, which is stable at 1,000 Hz and almost as small as the 6,000 W lamp that can alternatively be used. This allowed ARRI to design the M90 in a very compact housing, barely larger than the ARRISUN 60.

Accompanying the M90 is a new ballast, the EB 6/9, available in standard and high speed versions. Like other recent ballasts from ARRI, it features CCL (Compensation for Cable Loss) technology and the power-saving ALF (Active Line Filter). The EB 6/9 is DMX compatible and no bigger than ARRI's existing EB 6000 Baby ballast. ETL certified versions of EB 6/9 are available.

Features
Lens-less MAX Technology
Closes the gap between M40 and ARRIMAX 18/12
New 9000 W power class
New 9000 W lamps with the size of 6000 W lamps
Superior light quality
Light output matches a 12 kW PAR (with lens)
As small and lightweight as a 6 kW PAR
Focusable from 16° up to 49°
Can also be used with 6,000 W lamps and ballasts
Uses existing 6 kW cables
Cross-cooling allows safe operation until 90° tilt position*
Tilt locks on both sides hold any heavy accessories
Easy maintenance
Protection class IP23
Possibility to operate at 1,000 Hz
